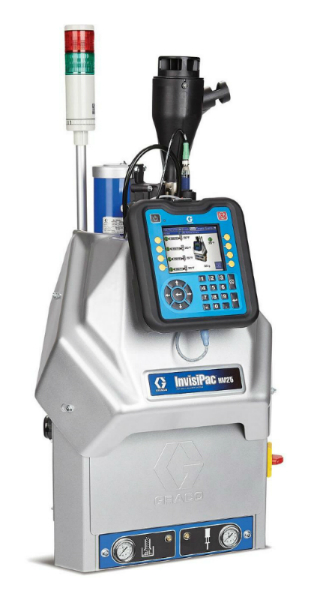

InvisiPac® Tank-Free ® Hot Melt Delivery System

Solve Customer Problems

  • Minimize Char
  • Eliminate Nozzle Plugs
  • Less Than 10 Minute Heat Up
  • Monitor Performance
  • Track Adhesive Usage
  • Use Less Energy
  • Improve Operator Safety
True Innovation Covers all the Bases…

Comprehensive System Approach

  • Integrated vacuum feed
  • State-of-the-Art Tank-Free™ melter
  • Superior heated hoses
  • Innovative applicator, free-flow path
  • Breakthrough module design
  • Next generation process control technology

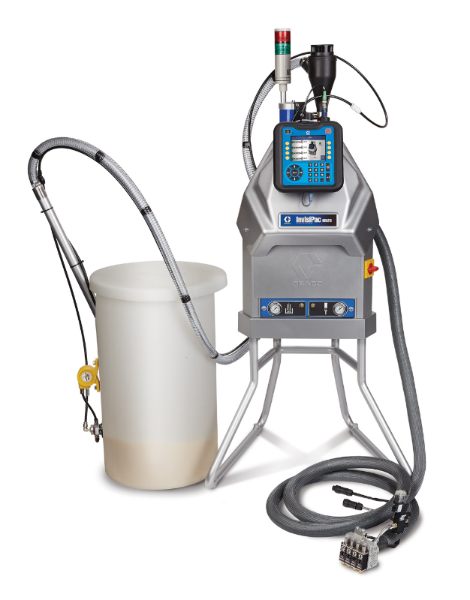

Integrated Automatic Vacuum Feed System
  • Eliminate Thermal Shocking
    – More consistent glue application
  • Reduce Contamination
    – Less plugging means more uptime
  • Continuous Supply
    – Automatically maintains required material in melter – saves time and labor

hot-melt3

hot-melt2

  • Reliable Performance
    – Minimizes maintenance
    – Removes the human factor
  • Improved Safety
    – Minimize burn hazards and operator strain
Tank-Free™ Design Minimizes Char

hot-melt4

  • Consistent adhesive level helps prevent char formation
  • First-In, First-Out: Less molten volume means less time at temperature… less degradation, less char
  • Use low grade adhesives or ensure premium performance with high grade adhesives
  • Process vacuum conveyable adhesives at up to 25 lbs/hr
After 7+ Months of In-Plant Operation…

hot-melt6



Tank-Free™ Design Minimizes Char

hot-melt7

hot-melt8

Improve Heat Up Time
  • Achieved through intuitive power management
    – Melt Chamber
    – Pump & Manifold
    – Hose
    – Applicator
  • Multi-Zone heat control minimizes power consumption while maximizing performance
    – Lowers operating costs
    – Provides flexibility to production and maintenance schedules
    – Gets up and running faster

hot-melt9

Superior Heated Hose Design
  • Built in over-temperature safety interlock
  • Designed with a silicon insulating layer
  • Up to temperature in less than 10 minutes

hot-melt10

hot-melt11

Design reduces adhesive char and skin formation.

The result – more uptime and lower maintenance costs.



hot-melt12

Innovative Applicator – Manifold and Module
  • Manifold
    – Free-flow path eliminates dead spots where char can form
    – Integrated basket-style filter
  • Module
    – Integrated tip filter eliminates plugging
    – Factory set spring, no adjustment required

hot-melt13

hot-melt14

Next Generation Advanced Display Module
  • Track Adhesive Usage
    – Positive displacement pump only moves when adhesive is dispensed – limits pump wear
    – Manage adhesive costs and ensure production quality
  • Event & Data Logging
    – Tracks data that helps customers ensure quality production
    – 175,000 past error/event list
    – 250,000 data entries (15sec interval)
    – 40+ days of continuous run time
    – Easy download via USB port
  • Intuitive User Interface
    – Graphics and text: Operators can learn to use the system quickly
    – Embedded diagnostics save service time

hot-melt15

Diagnostics, Errors and Events

hot-melt16

hot-melt17

hot-melt18

Data Tracking Leads to Process Control and Savings

hot-melt19

Reduce Costs and Increase Efficiency With Innovative Hot Melt Equipment

Customer Benefit InvisiPac™ Technology

Minimize Char
Eliminate Nozzle Plugs
Less Than 10 Minute Heat Up Time
Monitor Performance
Track Adhesive Usage
Use Less Energy
Improve Operator Safety
Reduced Maintenance Expense
Facilitate Adhesive Formulation Ingenuity
Simplify Adhesive Migration

What’s Innovation Without ROI?

hot-melt20
