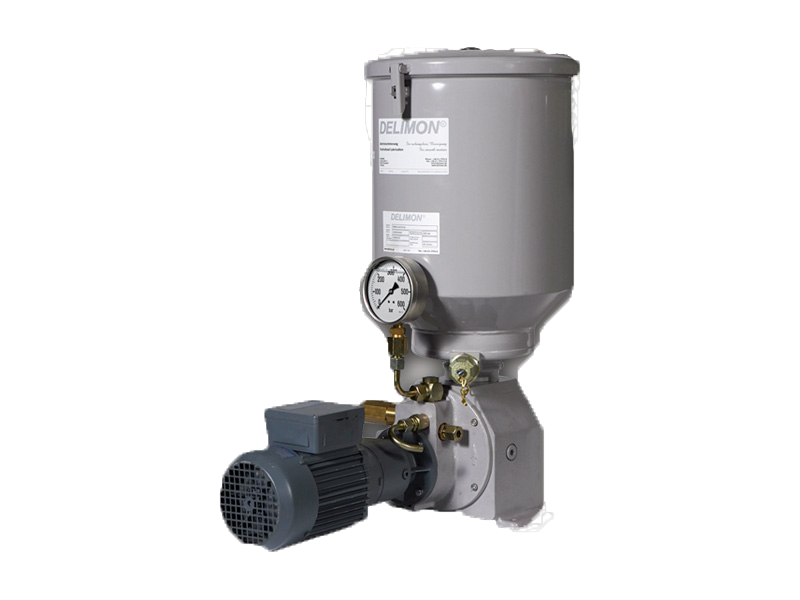

BMB Pump

APPLICATION
The BM-B pump with its constructional characteristics, may be used in single line, dual line, progressive and spray lubricating systems. Regardless of the number of lubrication points, the pump can be effectively adapted to meet any requirements. It can also be used for refilling and mobile greasing systems.

PRODUCT CHARACTERISTICS
– Discharge pressure adjustable up to max. 400 bar
– High reliability due to forced control
– Discharge: 2 litres/h, depends on driving speed
– Geared motors
– Long service life thanks to the use of wear-resistant high-grade steel
– Compact and rugged design
– Lubricant: oil, grease, liquid grease
– Surface signal grey RAL 7004
– Discharge pressure adjustable, max. 400 bar
– Discharge rate at 63 min-1 : 34 cm3/min ( 2,0 l/h ), 125 min-1 : 67 cm3/min ( 4,0 l/h )
– Max. rpm with motor : 125 min-1
– Rotational direction of drive left
– Reservoir capacity 8, 15 or 30 l
– Operating temperature according to design – 20 °C to + 80 °C
– Compatible lubricants up to NLGI class 3, DIN 51818, Mineral oils ISO VG 68 to 1500, DIN 51519
– Integral strainer strainer area 19 cm2, wire mesh size 0.4 x 0.18 DIN 4189
– Integral pressure relief valve adjustable from 0 to 450 bar, adjusted to 400 bar
When using the hydraulic 4/2-way valve SAK, the set pressure may not exceed 350 bar.
