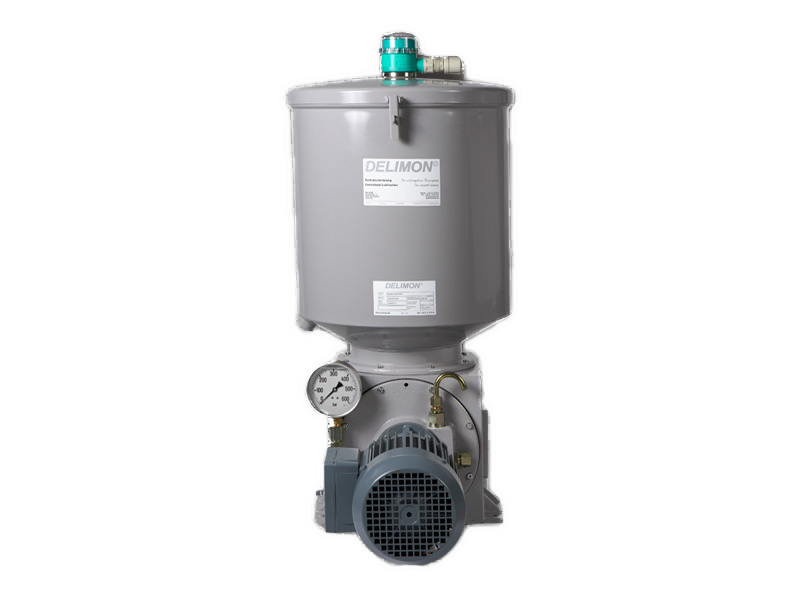

BSB Pump

APPLICATION
The pump BS-B is ideally suitable for applications where long extended main line runs and a large number of friction points are to be reliably served from one central station. In conjunction with distributors type ZV-B downstream the pump is predominantly used in dual-line centralized systems, but also as filling-or greasing pump.

PRODUCT CHARACTERISTICS
– Discharge pressure adjustable up to max. 400 bar
– High reliability due to forced control
– Discharge: 7, 14 and 22 liters/h, depends on driving speed
– Geared motors
– Long service life thanks to the use of wear-resistant high-grade steel
– Compact and rugged design
– Lubricant: grease, liquid grease
– Surface signal grey RAL 7004
Discharge pressure adjustable up to max. 400 bar
Discharge volume at 80 min-1 : 120 cm3/min ( 7 l/h ), 160 min-1 : 235 cm3/min ( 14 l/h ), 250 min-1 : 365 cm3/min ( 22 l/h )
Max. rpm geared motor version 250 min-1
Direction of rotation of the pump clockwise or anticlockwise
Reservoir capacity 60 or 100 l
Operating temperature according to type – 20° C up to + 80° C
Compatible lubricants up to NLGI-class 3 DIN 51818
Integral strainer strainer area 40 cm2, wire mesh size 0.4 x 0.18 DIN 4189
Integral pressure relief valve range from 0 up to 450 bar, adjusted to 400 bar
