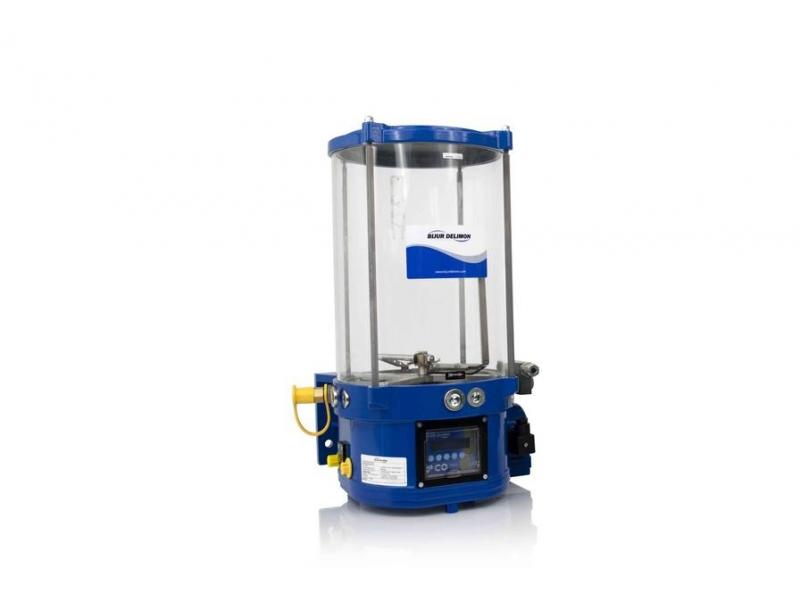

Dynamis Maxx

APPLICATION
The DYNAMIS MAXX pump was designed and developed to serve as a multi-function automatic lubricant pump. Due to its compact size and modular design, the pump can easily be modified for use in wind turbine power stations, general industry, commercial vehicle and spraying applications.

PRODUCT CHARACTERISTICS
– Pump for single-line, progressive and spray systems in wind power stations and for industrial applications
– Lubricant: grease, liquid grease up to NLGI class 2, Oil from 68 cSt
– Discharge pressure max. 160 and 300 bar
– Internal electric control (optional)
– Max. 16 outlets with flanged progressive distributor (optional)
– Filling connection
– Discharge volume: 2.9 cm3 /min per pump element
ADVANTAGES
– easy installation with re-integrated distributor and control
– easy monitoring of all functions
– robust and reliable (housing made of aluminium) even when used in vertically rotating systems
– Add-on system for various applications
– high level of corrosion resistance due to powder and zinc-nickel coating
– energy-saving
General details
Operating pressure max. 160 and 300 bar
Motor voltage 12 / 24 V DC or 115 / 230 V AC
Motor power 50 W
Lubrication outlet G 1/4
Rated single-piston delivery rate (also in combination) 2.9 cm³/min
Temperature range – 30° to + 75°C
Acceptable lubricants NLGI 000 class 2 (if operated at low temperature, select low temperature lubricant)
Available reservoir capacities 4 l, 8 l, 12 l, 15 l or 20 l
Discharge element output port (optional) Quick connector Rc1/4
Protection rating IP67
