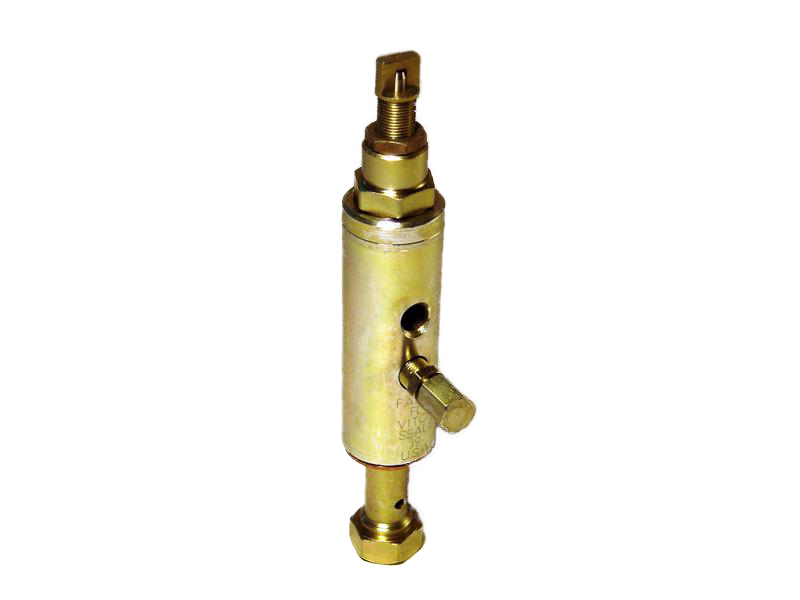

FL-1 Injector

APPLICATION
FL1 Injectors are positive displacement type. They have adjustable outputs and a visual indicator pin. They can supply one lubrication point, or several in combination with a progressive divider. All incorporate grease zerk fittings for priming system.

Function
The lubricant under pressure is introduced into entry port and pushes a seal which opens teh entry channel. Pressure moves the main piston to deliver a preadjusted volume determined by the value of the discharge chamber.
At the end of the lubrication cycle, the vent valves relieves the primary line. Spring which was compressed, pushes the seal to its initial position and opens the entry channel. When the main piston moves to the top, it transfers the lubricant into the discharge chamber. The injector is ready for the next cycle.
Discharge adjustable from 0.13 to 1.6 cm3
Working pressure 128 bar mini (1850 PSI), 240 bar maxi (3500 PSI), 170 bar (2500 PSI) recommended
Maximum vent recharge pressure 41 bar (600 PSI)
Working temperature -10°C (40 F) to + 175°C (350 F)
Lubricant to be used Oil with a viscosity of 220 Cst mini to semi fluid grease NLGI 000 to 2.
Life 100.000 working cycles
