Heavy Duty Air-Operated Grease Pumps

samoa

A full range of heavy-duty, high efficency, air powered piston pumps designed to pump today’s high viscosity greases at high flow rates.
• Time tested pneumatic air motor with only three moving parts and no springs for minimum maintenance.
• Aluminum air motor provides good heat transfer and incorporates high thermal efficiency, large diameter air exhaust manifolds.
• Muffler element design reduces noise levels.

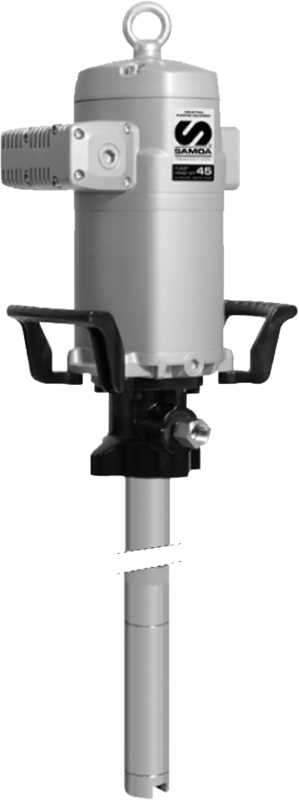

SAMOA PumpMaster 45 – 40:1 ratio grease pump – 185 kg (400 lb) drum

531410

High flow double acting pumps with high pressure delivery for use in lubrication systems that require a combination of high flow and pressure delivery. Pumps can be used with grease up to NLGI-2 viscosity.
These pumps can be used in medium length systems that include simultaneous operation outlets.
Pumps are available for cover mount to 50 kg – 120 lb and 185 kg – 400 lb open drums and for horizontal and side mount on grease totes and bags.

FLUIDS HANDLED:

  • Grease up to NLGI-2.

MARKETS SERVED:

  • Heavy Duty service shops.
  • Fleets.
  • Mining and construction.
  • Railroad and mass transit.
  • In-plant.
  • Marine.

Models

Part No. Application pump tube
height
Total
height
Weight
531 410 185 kg (400 lb) drum 855 mm 1.357 mm 25 kg
531 420 50 kg (120 lb) drum 650 mm 1.152 mm 22 kg
531 430* Bulk tote 490 mm 992 mm 26 kg

* Includes adaptor 753 110 to fit a 3″ cam-lock connector for use in totes and grease bags.

Technical Data

Pump pressure ratio 40:1
Continuous duty flow rate 3,5 kg/min (7.5 lb/min)
Maximum free flow 11 kg/min (24.3 lb/min)
Air pressure operating range 1,5 – 14 bar (20 – 200 psi)
Maximum outlet pressure 560 bar (8,000 psi)
Air motor effective diameter 115 mm (4.5″)
Air motor stroke 100 mm (4″)
Air consumption (1) 750 Nl/min (26.5 cfm)
Air inlet 1/2″ BSP (F)
Fluid outlet 1/2″ BSP (F)
Wetted and seals materials Cast Iron / Steel / Hard chromed steel / UHMW PE / NBR / PTFE
Noise level (2) 80 dB

(1) Air consumption at 5 bar air pressure, NLGI-2 grease at 20 oC and 80 cpm.
(2) Noise level measured at 1 m from the pump, 7 bar air pressure and free delivery.

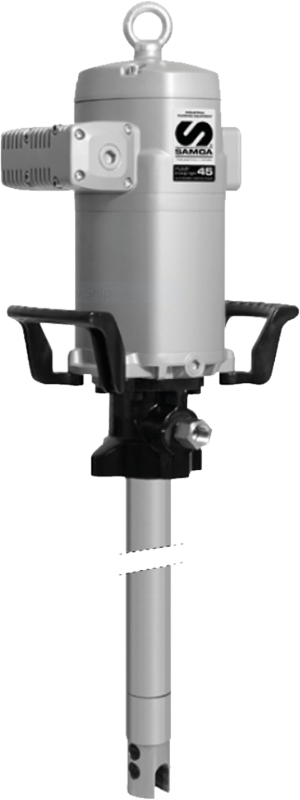

SAMOA PumpMaster 45 – 70:1 ratio grease pump – 185 kg (400 lb) drum

531710

High pressure double acting pump for use in applications that require extra pressure output or when cold temperatures a low air pressure could limit pump performance.
Pumps can be used with grease up to NLGI-2 viscosity. These pumps can be used in large distribution systems that include simultaneous operation outlets.
Pumps are available for cover mount to 50 kg – 120 lb and 185 kg – 400 lb open drum and for horizontal and side mount on grease totes and bags.

FLUIDS HANDLED:

  • Grease up to NLGI-2.

MARKETS SERVED:

  • Heavy Duty service shops.
  • Fleets.
  • Lube trucks.
  • Mining and construction.
  • Railroad and mass transit.
  • In-plant.
  • Marine.

Models

Part No. Application pump tube
height
Total
height
Weight
531 410 185 kg (400 lb) drum 855 mm 1.357 mm 25 kg
531 720 50 kg (120 lb) drum 650 mm 1.152 mm 22 kg
531 730* Bulk tote 490 mm 992 mm 21 kg

* Includes adaptor 753 110 to fit a 3″ cam-lock connector for use in totes and grease bags.

Technical Data

Pump pressure ratio 70:1
Continuous duty flow rate 2 kg/min (4.5 lb/min)
Maximum free flow 7,5 kg/min (16.5 lb/min)
Air pressure operating range 1,5 – 7 bar (20 – 100 psi)
Maximum outlet pressure 490 bar (7,000 psi)
Air motor effective diameter 115 mm (4.5″)
Air motor stroke 100 mm (4″)
Air consumption (1) 925 Nl/min (32.6 cfm)
Air inlet 1/2″ BSP (F)
Fluid outlet 1/2″ BSP (F)
Wetted and seals materials Cast Iron / Steel / Hard chromed steel / UHMW PE / NBR / PTFE
Noise level (2) 80 dB

(1) Air consumption at 5 bar air pressure, NLGI-2 grease at 20 oC and 80 cpm.
(2) Noise level measured at 1 m from the pump, 7 bar air pressure and free delivery.

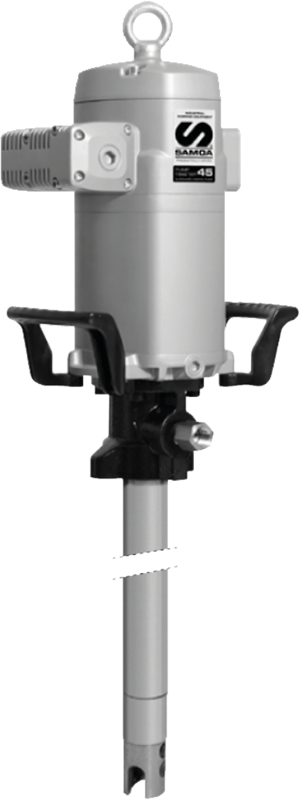

SAMOA PumpMaster 60 – 80:1 ratio grease pump – 185 kg (400 lb) drum

532810

Very high pressure and high volume delivery double acting pump for use in applications that require extra pressure and volume output and where cold temperatures or low air pressure could limit pump performance.
Pumps can be used with grease up to NLGI-2 viscosity. These pumps can be used in large distribution systems that include simultaneous operation outlets.
Pumps are available for cover mount to 50 kg -120 lb and 185 kg – 400 lb open drum and for side mount on grease totes.

FLUIDS HANDLED:

  • Grease up to NLGI-2.

MARKETS SERVED:

  • Mining and construction.
  • In-plant.
  • Railroad and mass transit.
  • Lube trucks.
  • Fleets.

Models

Part No. Application pump tube
height
Total
height
Weight
532 130* Bulk tote 226 mm 742 mm 19 kg

* Includes adaptor 753 110 to fit a 3″ cam-lock connector for use in totes and grease bags.

Technical Data

Pump pressure ratio 12:1
Continuous duty flow rate 15 kg/min (33 lb/min)
Maximum free flow 40 kg/min (88 lb/min)
Air pressure operating range 1,5 – 7 bar (20 – 100 psi)
Maximum outlet pressure 84 bar (1,200 psi)
Air motor effective diameter 150 mm (6″)
Air motor stroke 100 mm (4″)
Air consumption (1) 1.100 Nl/min (39 cfm)
Air inlet 1/2″ BSP (F)
Fluid outlet 1″ BSP (F)
Wetted and seals materials Cast Iron / Steel / Hard chromed steel / UHMWPE / NBR / PTFE / Polyurethane
Noise level (2) 80 dB

(1) Air consumption at 5 bar air pressure, NLGI-2 grease at 20 oC and 60 cpm.
(2) Noise level measured at 1 m from the pump, 7 bar air pressure and free delivery.
