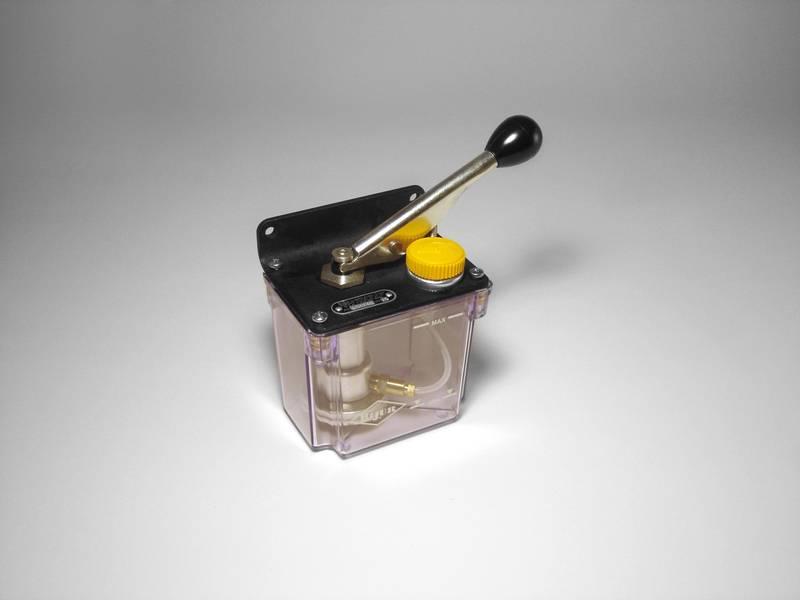

L5P Pump

APPLICATION
The L5P Lubricator is a manual, one shot lubricator of spring discharge type that is operated by pushing the operating handle down, which raises a piston and compresses a spring. Releasing the handle automatically discharges oil into the system. Oil viscosity does not affect discharge volume, but may affect system pressure.

Reservoir Capacity 1 pint (475cc)
Lubricator Inlet Filter 40 micron particle separation
Discharge Pressure 75 psi maximum
Factory Discharge Setting 5cc
Discharge Volume Per Stroke 1 to 5cc
Viscosity range 150 to 8,000 SSU at operating temperature
