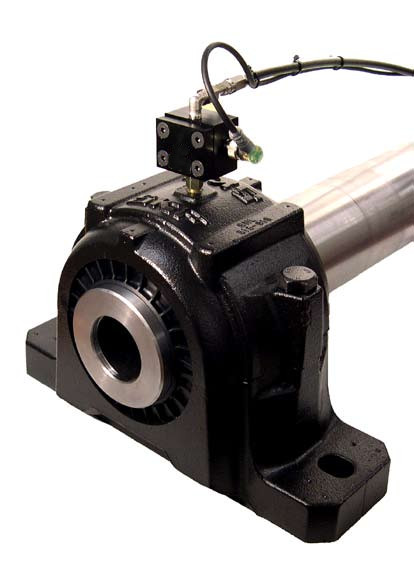

Lubrication Point Monitoring System lube mon m

LPM lubrication point monitoring system has been developed to monitor and guarantee that the correct amount of lubricant has reached the lubrication point each and every time.
The system is a combination of heavy duty grease and/or oil flow meters with an application specific automation board.
It safeguards the critical lubrication points in your installations against blocked lines or leakages. Provides real time feedback about the status of all the points and an alarm in case of a problem.
Principal Of Operation
An oval gear flow meter is mounted at or near the lubrication point inlet. (installation of an appropriate filter is recommended after the pump’s outlet, to keep contaminants out)
The oval gear mechanism incorporates two magnets into one of the nylon oval gears. The body incorporates a read switch which senses the magnet passing. Lubricant entering the flow meter causes the gears to rotate. Each pulse equates to a specific volume of lubricant. (depends on the flow meter model)
Feedback from the flow meter is evaluated by the LPM Controller and warnings are given locally and remotely, when a problem occurs.

Lubrication Point Monitoring System lube mon
Lubrication Point Monitoring System oval gear

Installation Example

installation  Lubrication Point Monitoring System installation


Monitoring of up to 16 lubrication points (standard version, expandable)
Points can be allocated in two independent groups without restrictions (8-8, 4-12 etc. different lubrication systems/zones)
Different target value for every group and lubrication point (each point may have different lubrication requirements)
Local indication and remote error signal when any point misses its target value.

Interface easy to setup and monitor
Colored touch screen
Multiple security levels to avoid unauthorized access
Data trend presentation
Event and error history
Monitoring and control via Ethernet from a PC
Monitoring and control from tablets and cell phones (requires WiFi)

Interface Examples

interface1  Lubrication Point Monitoring System interface1

graphical progress dials

interface3  Lubrication Point Monitoring System interface3

error log

interface2  Lubrication Point Monitoring System interface2

color coded progress bars

interface4  Lubrication Point Monitoring System interface4

data trend presentation
