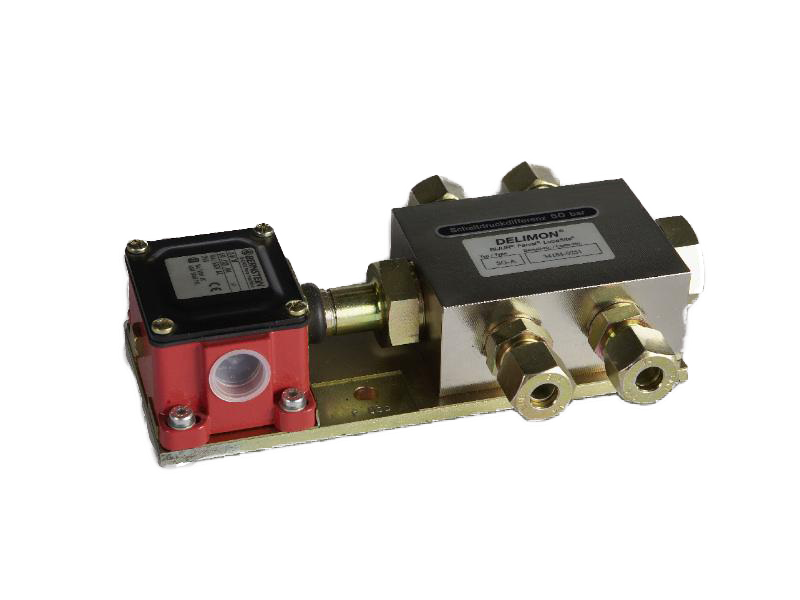

SG-A Switching device

APPLICATION
The switching device SG-A is used as differential pressure switch in dual-line centralized lubrication system. When the differtial pressure is 50 bar and/or 100 bar, it releases a pulse for the reversion of the directional control valve or for the monitoring of the system.

Product Characteristics
– Switching pressure difference 50 or 100 bar
– Working pressure 400 bar

– Switching pressure difference 50 or 100 bar
– Working pressure max. 400 bar
– Output volume 0.7 cm³
– Rated voltage max. AC 240 V
– Contact rating min. 10 mA at DC 24 V
– Contact rating max. 3 A
– Power rating at 500V max. 7500 VA
– Protection system IP 65
– Suitable lubricants on mineral oil basis Lubricant greases NLGI class 000 up to 3 DIN 51818 (51825),Oils with a viscosity from 190 mm²/s at operating temperature, Synthetic lubricants on request
– Ambient temperature between – 20°C and + 80°C
– Installation position optional
– Weight 3 kg
