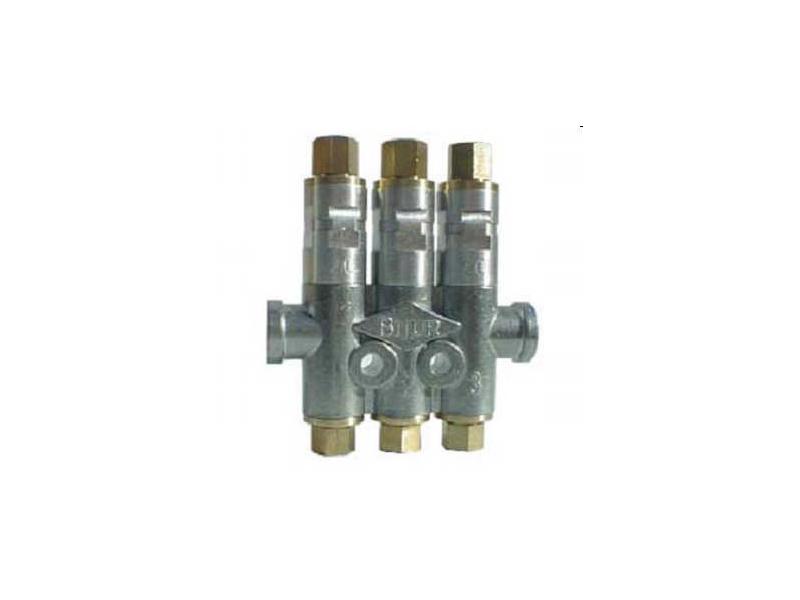

SJM Injector

APPLICATION
The injector type SJM (indirect action) are perfectly adapted for use with the volumetric system (PDI) in cyclic systems. It determines a fixed predetermined quantity for each discharge cycle. One, three and five outlet die cast manifolds are available. Screws – in PDI’s – are easy to change without disturbing manifold and secondary line connections.

Discharge 0.06 to 0.4 cm3/stroke – 1.3 to 5 outlets
Pressure
normal 17 bar mini
max 35 bar
discharge 0.5 bar
Working temperature 80° max
Lubricant to be used mineral oil viscosity from 20 to 500 Cst
