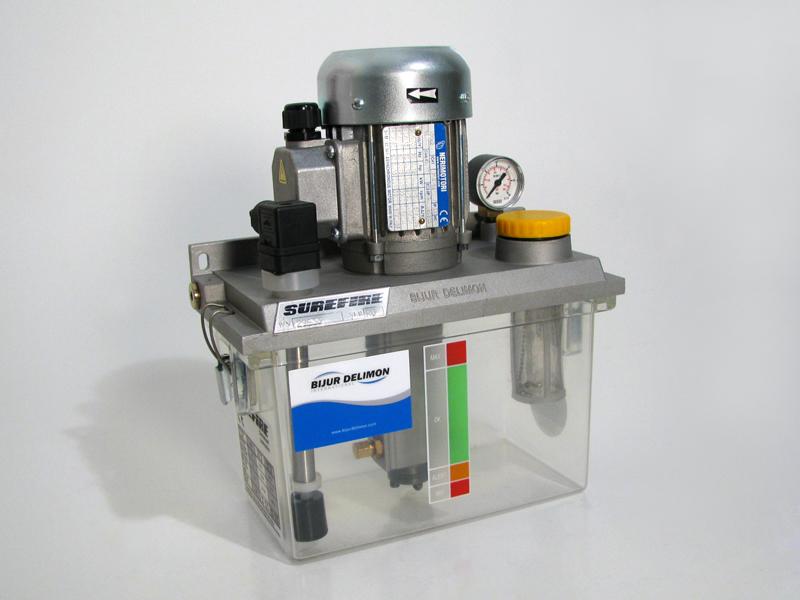

SureFire SLR Lubricator

APPLICATION
The SureFire SLR automatic lubricator is a robust and durable pump that can handle oil and soft greases. Its compact size is designed to fit your space requirements and lubrication demands. The SureFire SLR lubricator is a self-contained electric motor-driven gear pump that can adapt to a broad range of production machinery. It can handle resistance fittings or resistance fittings groups serving up to 100 lubrication points. Its versatility also allows it to perform with other lubrication system types and multiple applications.

– Handles oil
– Low level switch for failsafe operation
– Hydraulic outlet connections on either side
– Quick-snap reservoir release
– Large capacity fill cap with built-in strainer
– Convenient plug-in type terminal block
– Optional timer or controller/monitor
– Bypass assembly
Output Volume – 115 VAC, 230 VAC (max.) 200cc/min @ 60 Hz (167cc/min @ 50 Hz)
Output Volume – 24 VDC (max.) 250cc/min
Output Volume – Three phase (max.) 200 or 500cc/min @ 60 Hz; 167 or 415cc/min @ 50 Hz
Output Pressure (max.) 75 psi (5 bar), 130 psi (8.9 bar) 3-Phase Models
Pressure Switch Setting Closes at 20 ± 5 psi (1.4 ± 0.3 bar)
Lubricant Viscosity Oil 20 to 1500 cSt at operating temperature
Reservoir Fill Screen (oil only) 40 mesh, removable
Reservoir Volume 1.8 liter, 2.7 liter, 6.0 liter, 12.0 liter
Reservoir Material Clear Terlux Plastic for 1.8, 2.7 and 6.0 liter, Steel for 12.0 liter
Motor Voltage Options 115 VAC, 230 VAC 50/60 Hz, 24 VDC (single phase), 230/415 VAC 50 Hz, 260/480 VAC 60 Hz (three phase)
Motor Power Requirements Approximately 140 watts
Operating Temperature Range 40°F through 105°F (5°C through 40°C)
IP Enclosure Rating IP-54
Electrical Fitting Liquid tight
Output Connection G 1/4 BSPP
Single (main) Feed Line 6mm O.D. minimum recommended
