TMD-5 Pump

APPLICATION

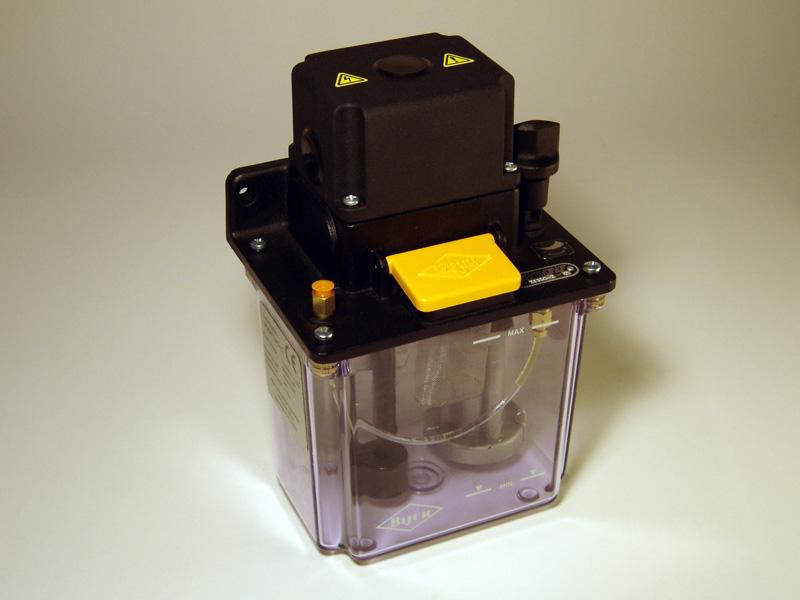

The TMD-5 lubricator includes a motor-driven, spring discharge piston pump. The unit may be operated manually by raising and releasing the manual feed knob. Volume of lubricant discharged for each cycle is selected using adjustment shown on marked indicator rod. Cycle time is fixed by an internal gear reduction motor which runs continuously when powered. A lubricant low level switch is provided for signaling low level condition.

Motor: Single phase
Power Rating: 3 watts, 50/60 Hz
Current (Average Values): 15mA (230 VAC), 30mA (115 VAC). 33mA (24 VDC)
Supply Voltage: 115/230 VAC ±10%, 50/60 Hz , 24 VDC
Protection: IP52
Discharge Volume: Adjustable, 1-5cc per cycle
Discharge Pressure: 4.1 bar (60 psi) maximum
Connection Port: 5/16-24 inch female for tube ø 4mm (5/32”) O.D.
Reservoir Lubricant: 1.8 liters (110 cu. in.) plastic
Viscosity: 27-1700 cSt (150-8000 SSU) at operating temperature
Operating Temperature: 5°C to 40°C (40°F to 105°F)
Suction Filter: 40 micron (nominal)
Low Level Switch: Contact rating: 10 watts maximum
Weight: 2 kg (4.5 lbs)
Noise Emission: Less than 70dB(A)
