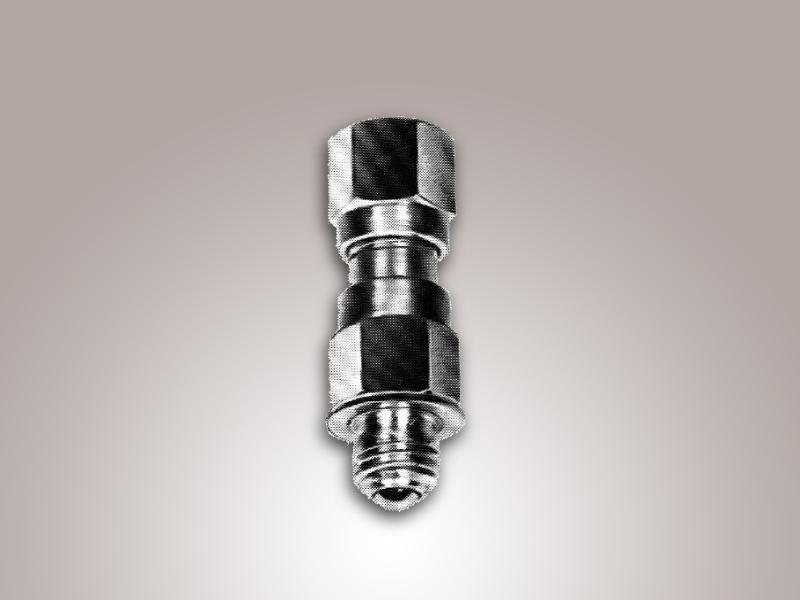

ZEE Injector

APPLICATION
ZEE Injectors can only be used in cyclic operation oil systems and feed in one direction only. These injectors can be mounted in any direction.

ZEE Injectors deliver a fixed pre-measured quantity of lubricant at the outlet connection during each discharge cycle. ZEE Injectors are available in five discharge rates. System distribution connections utilizing Bijur Delimon standard junctions and 4mm (5/32”) secondary tubing can be used with these units.
Oil Viscosity 30-2000 cSt at operating temperature
Mounting Junction
Discharge Preset (non-adjustable) in five various rates
Maximum Operating Pressure 435 psi (30 bar)
Minimum Operating Pressure 145 psi (10 bar)
Maximum Relieving Pressure 11 psi (0.8 bar)
Maximum Operating Temperature 175°F (80°C)
Leaktight Junction Connection 4.5 Newton-Meter (40 pound inch maximum)
Material Steel
Inlet M10X1 male threads
Outlet 4mm (5/32) tubing connection
