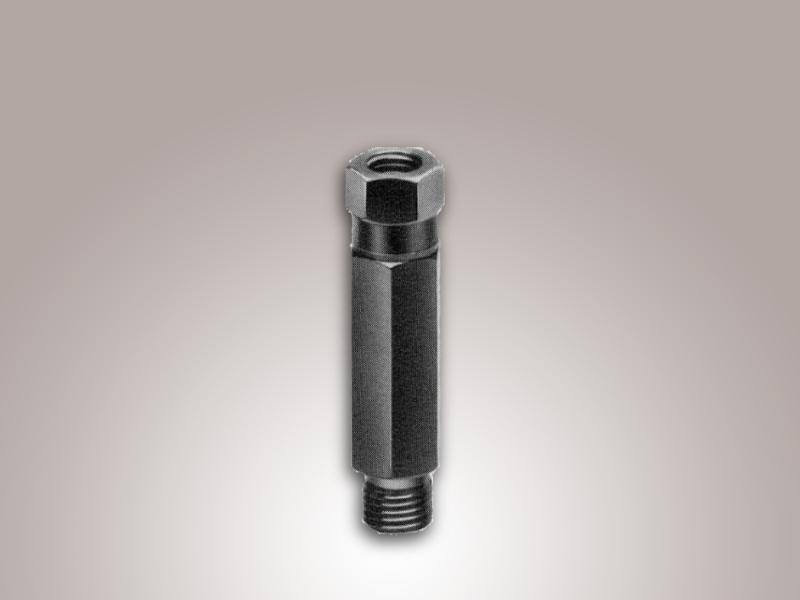

ZEG Injector

APPLICATION
ZEG Injectors can only be used in cyclic operation oil systems and feed in one direction only. These injectors can be mounted in any direction.

ZEG Injectors deliver a fixed pre-measured quantity of lubricant at the outlet connection during each discharge cycle. ZEG Injectors are available in six discharge rates. System distribution connections utilizing Bijur Delimon standard junctions and 4mm (5/32”) secondary tubing can be used with these units.
Oil Viscosity 30-3000 cSt at operating temperature
Mounting Junction
Discharge Preset (non-adjustable) in six various rates
Maximum Operating Pressure 435 psi (30 bar)
Minimum Operating Pressure 145 psi (10 bar)
Maximum Relieving Pressure 36 psi (2.5 bar)
Maximum Operating Temperature 175°F (80°C)
Leak tight Junction Connection 4.5 Newton-Meter (40 pound inch maximum)
Material Brass
Inlet M10X1 male threads
Outlet M8X1 female threads (for 4mm (5/32) tubing connection)
