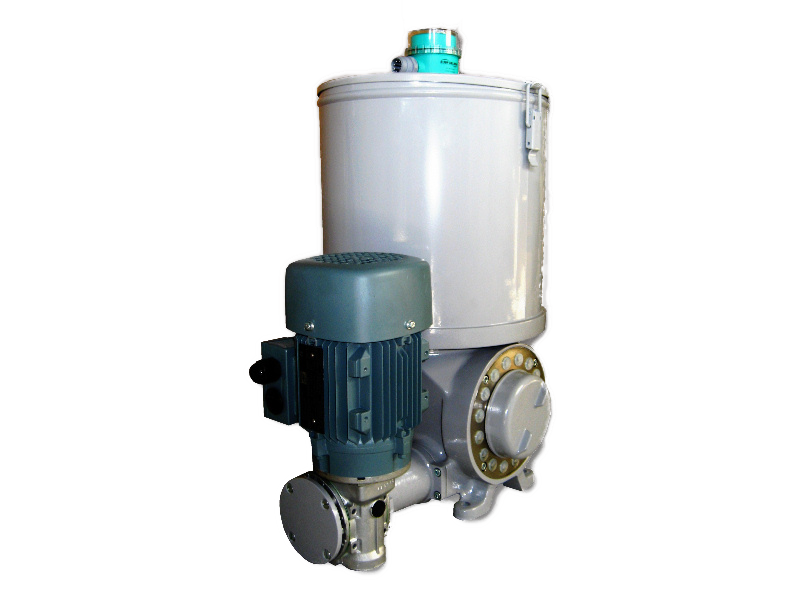

ZP6000 Pump

APPLICATION
The pumps ZP6000 are used for direct lubrication in multi-line systems (one delivery element per lubricating point) or as delivery pump for lubricant in progressive systems.

PRODUCT CHARACTERISTICS
– Multi-line pump
– up to 32 lubrication points
– Maintenance-free
– Pressure range up to 160 bar
– Lubricant: oil, grease, liquid grease
– Surface signal grey RAL 7004

Rated pressure 160 bar
Operating pressure in dependence on operating mode and operating conditions
Rate of delivery per outlet 0 – 0.2 cm3/stroke
Pipe connection for feed line M 14 x 1.5
Step-down ratio 150 : 1; 225 : 1; 450 : 1
Delivery rate 1.69 cm3/min; 1.12 cm3/min; 0.6 cm3/min
Rated speed of pump shaft (rpm) max. 12 min-1
Electro motor K21R 71 G4 IM B14K
Rated speed 1360 min-1
Motor power 0.37 kW
NLGI class 000 – 3
Temperature range – 30 °C up to + 60 °C
Number of outlets max. 32
Reservoir capacity 10; 20; 30; 60 liters
Weight 40 and/or 50 kg
